Decision question
Where was dissolved N₂O developing across the ASP, and which measured conditions could help focus further investigation?
Agile N₂O monitoring linked process emissions to changing operating conditions
South West Water, Jacobs and BI-Zen combined fixed dissolved N₂O monitoring, a settled-sewage Optimiser and a mobile floating profiling rig across three activated sludge lanes. High-frequency evidence established an ASP baseline, revealed lane-to-lane variation and focused the next stage of investigation.
Site / asset snapshot
Site context
Large south west water wastewater treatment works
Main treatment
Carbonaceous activated sludge with downstream nitrifying N.Baff
Project stage
Process-emissions baseline and monitoring-method development
Monitoring scope
Fixed sensors, settled-sewage optimiser and mobile floating profiling rig
Process and monitoring points
The monitoring moved between three ASP lanes, combining fixed and mobile measurements without requiring a permanent installation.
Settled sewage
Asp lane inlet
Aerated zone 1
Aerated zone 2
Final settlement
Nitrifying n.Baff
Settled-sewage optimiser
fixed dissolved N₂O monitoring mobile profiling across three ASP lanes
Project need
Primary driver
Build a site-specific ASP baseline and test an agile method for process-emissions investigation
Evidence gap
Generic emission factors and limited sampling could not show when or where dissolved N₂O developed
Why it mattered
Without aligned process evidence, future monitoring or mitigation may focus on the wrong location or mechanism

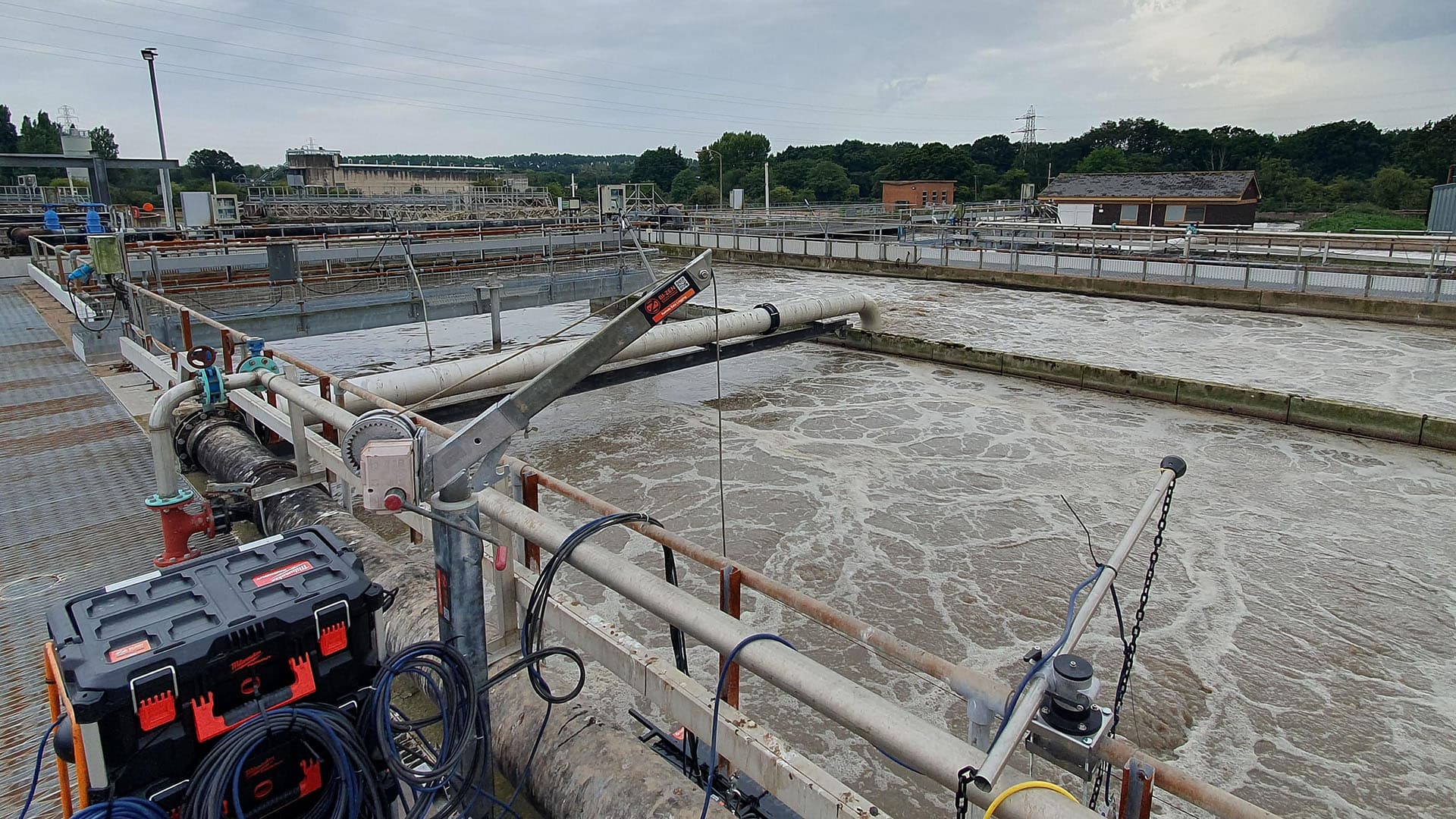

BI-Zen delivery, evidence and decision informed
Fixed monitoring and mobile profiling turned a broad emissions question into a focused programme of process evidence
Bi-zen delivery
Deployment
Settled-sewage optimiser, fixed N₂O sensors and a floating profiling rig across three ASP lanes
Measured
N₂O, ammonia, nitrite, nitrate, DO, COD, ph, ORP and temperature
Aligned with
Settled-sewage load, lane flow, airflow and operational information
Service provided
Bi-zen monitoring and live data, with jacobs emissions calculations and interpretation

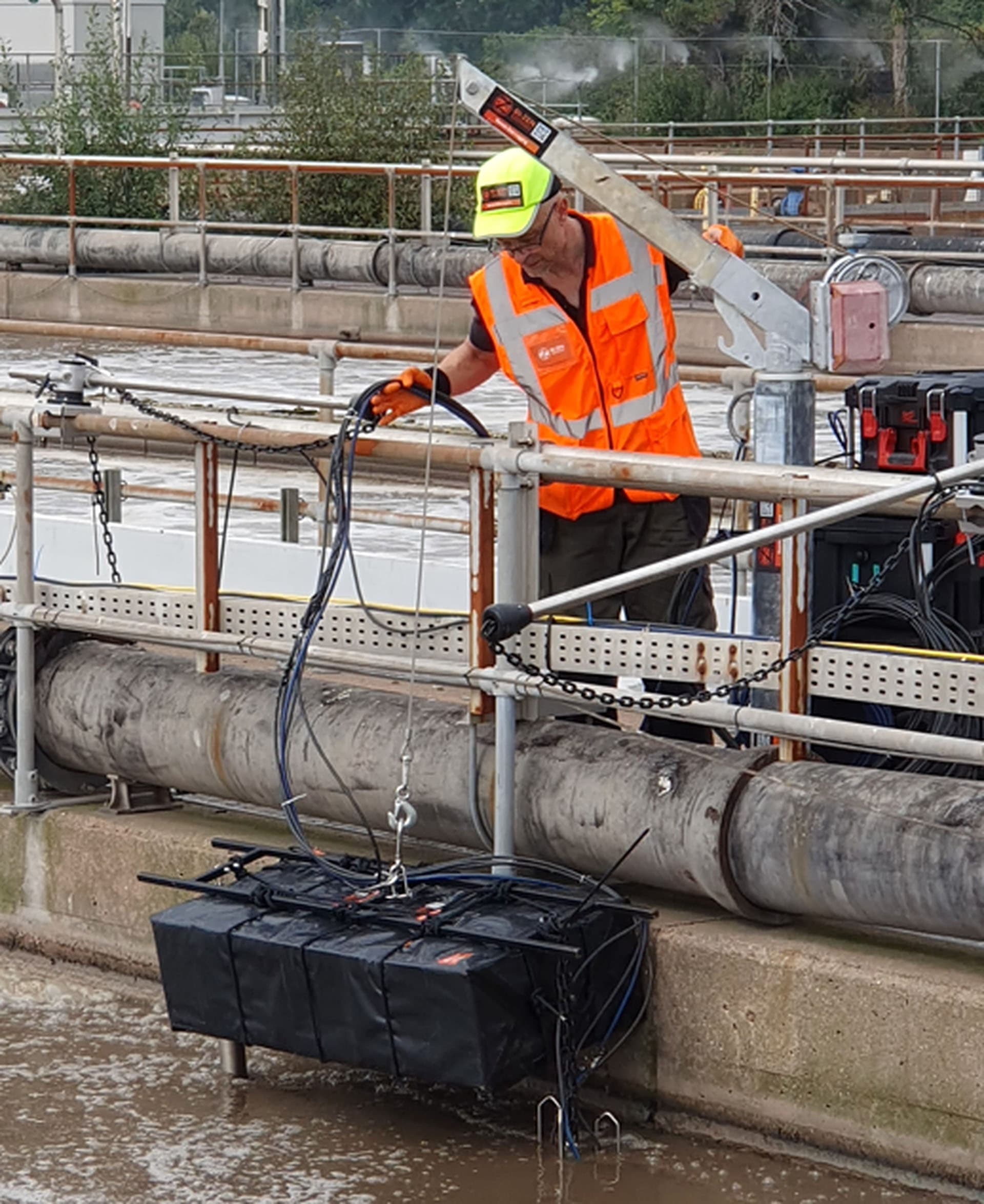

Proof of concept: mobile asp profiling
A mobile floating platform carried sensors for dissolved N₂O-N, NH₄-N, NO₂-N, NO₃-N, COD, dissolved oxygen, redox and supporting process parameters.
The iot-enabled system logged at one-minute intervals as the platform profiled conditions across the asp
What became clearer
The three monitored lanes showed different dissolved N₂O behaviour despite broadly stable incoming flow and load. Aligned N₂O, nitrite and nitrate profiles provided evidence of partial nitrification and established an ASP emission-factor range of 0.05–0.4% N₂O-N/TN incoming for the monitored periods. The data did not prove a single cause, but it narrowed the conditions and locations requiring further investigation.
Decision informed
South west water gained a site-specific ASP baseline and a repeatable, agile monitoring method. The evidence supported seasonal follow-up, further review of lane loading and aeration, and separate investigation of the downstream nitrifying N.Baff.
